Máy lấy mẫu xi măng
Model: CT5-P/500A
Hãng sản xuất: Zhong He - Trung Quốc
Thông số kỹ thuât:
General Description
This sample collector applies to the dry solid powder materials, such as the raw cement and the cement. It can operate continuous sampling or discontinuous sampling automatically, the sampling amount and the sampling time and place can be adjusted stochastically. According to the different demands of different factories and laboratories, we can provide different types of the sample collectors, and the storage casks also have the fixed type and the unfixed type.
Working Theory
This sample collector applies the transmission theory of the helical reamer, through the coupling to connect the decelerate motor and the helical reamer. Through the material inception hole incept a part of the materials (as the sample) to the material inception duct, and through the helical reamer push the sample to the driving end, and to the storage cask.
Technical Parameters
| Type |
Allowable length into the duct |
Material temperature |
Normal collecting quantity |
Motor capacity |
Operating current |
Operating voltage |
| CT5-P/500A |
240~360mm |
Above 100℃ |
0.55kg/min |
120W |
0.44A |
~380V |
| Remark: The length into the duct can be designed by the site condition. |
Main Characteristics
This sample collector uses the three-phase motor control, reliable operation, small size and easy installation. The sealing device certificates than CT3-P Series greatly improved.
Structure Profile

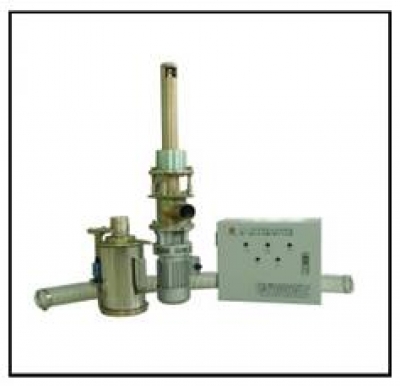

Show as the above figure 1,this sample collector contains two parts: electric control and mechanism.
The mechanism part is shown as below:
Inception hole is in the leading end of inception duct which extending into the elephant trunk. The powders pass through the inception hole to the inception duct, then through the connection tube to the storage cask.
The double ends of connection tube are fixed on the descending meatus of sample collector and entrance of storage cask by clamps.
Fixation flange is welded on the wall of elephant trunk, connecting the actuator by holding screw, for fixing the actuator.The storage casks have types of fixed and unfixed, fixed on site by bracket.
Samples taken out when anti-clockwise rotation materials Cup gland, removed the powder materials Cup; Reserve expected back after the Cup and clockwise rotation gland clamping certificates materials Cup.
